This quick terraform project sets up an EC2 instance, configures wireguard, generates the required keys (including a PSK) and provides the wireguard “Client” configuration.

The code can be found here

WARNING: Cloud network egress/throughput will incur costs which can vary from region to region.

Purpose

This terraform code (and associated template file containing a bash script) will create an EC2 instance which is running wireguard and can be used as a VPN endpoint.

NOTE: If being used when traveling, the script should ideally be run on a trusted network before connecting to a hotel / coffee shop wireless networks.

Diagram

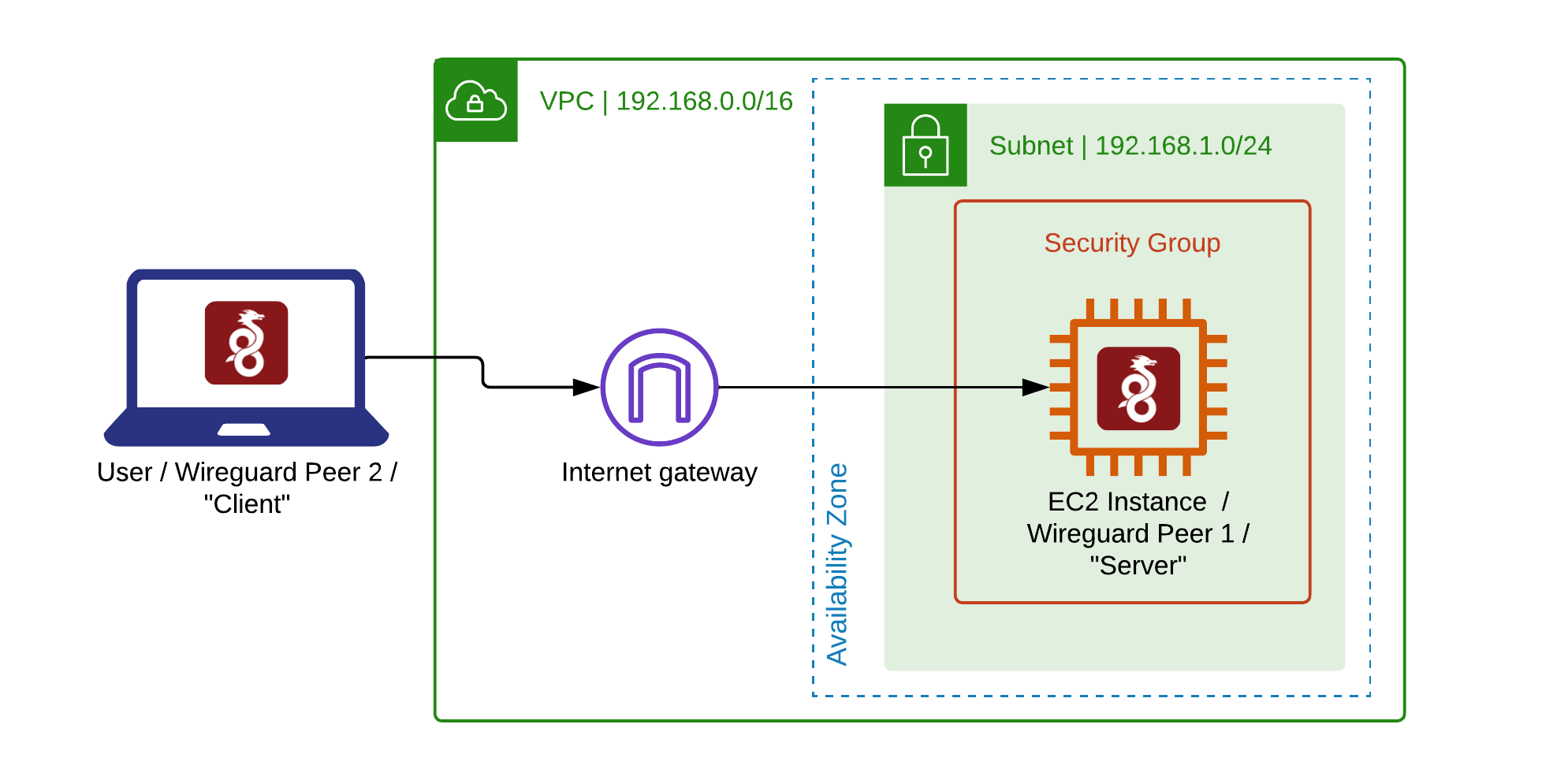

Here is a simple diagram showing the AWS resources which are created: Diagram

Usage instructions

Obtain the code in the usual way, with git clone https://github.com/edrandall-dev/terraform-wg-aws

Ensure that the AWS CLI and terraform are installed and correctly configured on your local machine (laptop).

NOTE: The desired region and other user-definable variables should be set/verified in the terraform.tfvars file. Keys are created automatically and should be left blank.

Change to the code directory with cd terraform-wg-aws and do terraform init before executing ./start.sh

The EC2 instance (and associated cloud resources) will be built within AWS. Keys are automatically created and a “client” configuration will be provided as a terraform output. This can be pasted into Wireguard VPN client to connect to the VPN. The wireguard desktop client can be downloaded here

To tear the environment down (and delete keys from terraform.tfvars run the ./stop script.)

Under normal operation, there should be no need to connect to the EC2 instance via SSH, and as such no keys are created. If an SSH connection is needed, EC2 instance connect can be used (via the AWS console) if the following security group rules in security.tf are uncommented.

# SSH access from anywhere
  /*
  ingress {
    from_port = 22
    to_port   = 22
    protocol  = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
  */

To do:

  • Do both amd64 and arm64 and have some logic in the instances.tf to figure out which type is being used
  • Move security groups out to separate rules, also do a variable for “insecure_allow_ssh”
