Overview

This post covers 3 major topics:

  • Kubernetes Lab Environment: The steps that I took to setup a Kubernetes cluster from scratch, in a self-hosted virtualised environment using Oracle Virtualbox and Hashicorp Vagrant
  • Kubernetes Notes, Commands and Manifests: A collection of commands which I noted down as part of my preparation for the Certified Kubernetes Administrator exam
  • Information Sources: A list of links to the main sources of information which I used when creating this environment and learning Kubernetes

Kubernetes Lab Environment

The VMs which formed the Kubernetes cluster were deployed on a Dell Precision workstation with plenty of CPU and RAM resources:

edrandall@precision:~$ cat /proc/cpuinfo  | grep processor | wc -l
24
edrandall@precision:~$ free -g
               total        used        free      shared  buff/cache   available
Mem:              62           1           1           0          59          59
Swap:              1           0           1



Infrastructure Layout

The following diagram shows how the environment was created out on the Dell Workstation. All systems (apart from my macbook, ran ubuntu linux):

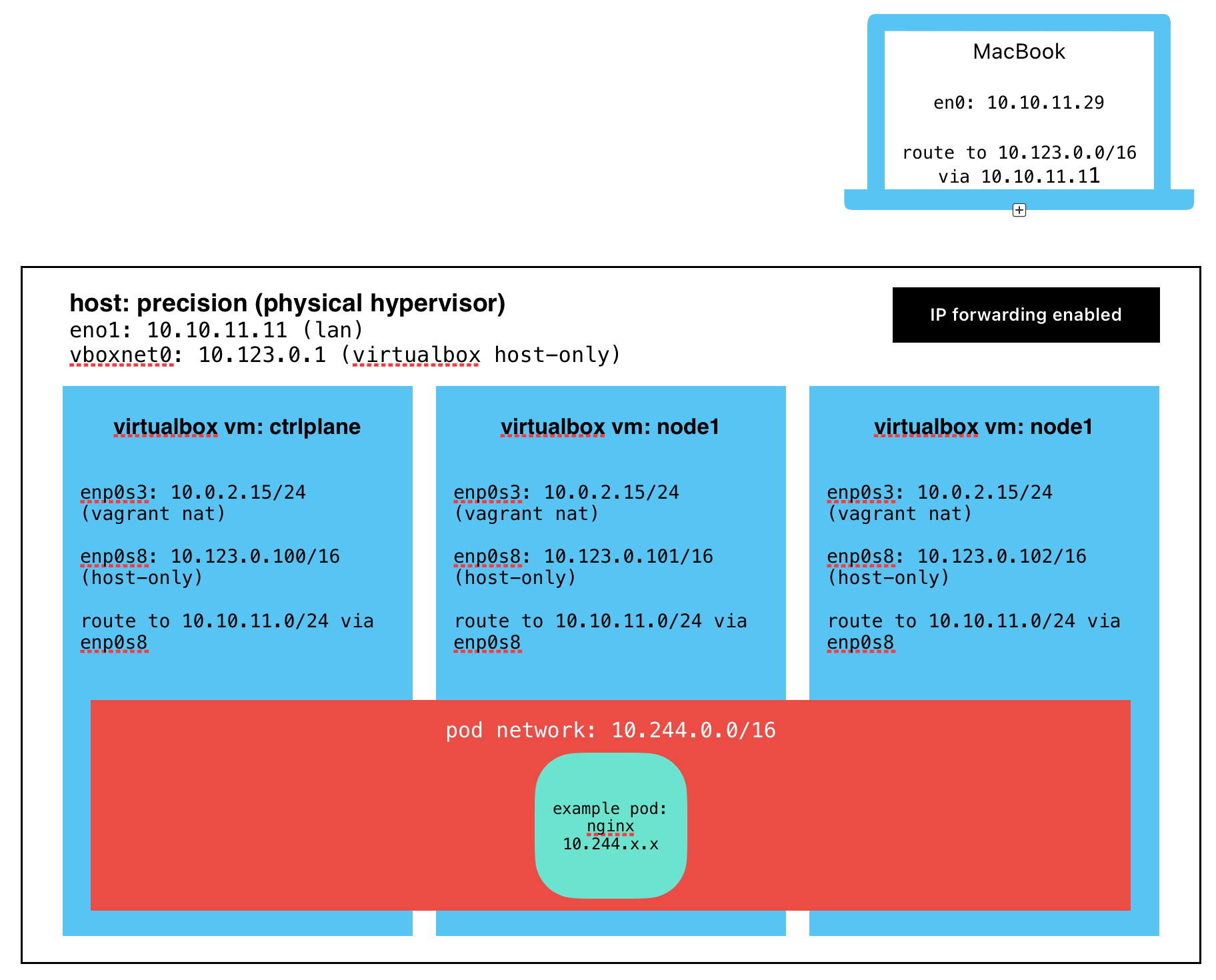

Infrastructure Layout on Dell Workstation

In order to allow network access to applications running on pods, the following configuration was made on my macbook, the dell workstation and each VM created by vagrant:

Route on Macbook:

edrandall@Eds-MacBook-Pro ~ % sudo netstat -nr | grep 123
10.123/16          10.10.11.11        UGSc              en0

IP forwarding enabled on precision workstation:

edrandall@precision:~$ cat /proc/sys/net/ipv4/ip_forward
1

Route created on all VMs:

function tln_route {
  echo "Creating a route back to 10.10.11.0/24"
  ip route add 10.10.11.0/24 via $HOST_NET.1 onlink dev enp0s8
}



Detailed Configuration Information

The VagrantFile, and custom deployment scripts can be found in the test-environment folder on my Kubernetes GitHub repository .



Kubernetes Notes, Commands and Manifests

Setting up (tab) autocomplete for a bash shell

source <(kubectl completion bash) # set up autocomplete in bash into the current shell, bash-completion package should be installed first.
echo "source <(kubectl completion bash)" >> ~/.bashrc # add autocomplete permanently to your bash shell.



Create an alias ‘k’ and enabling autocompletion to work with it

alias k=kubectl
complete -o default -F __start_kubectl k



Deploy a messaging pod using the redis:alpine image with the labels set to tier=msg

k run messaging --image=redis:alpine --labels="tier=msg"



Create a namespace called production

k create namespace production



Get the list of nodes in JSON format and store it in a file at /opt/outputs/nodes.json

k get nodes -o json > /opt/outputs/nodes.json



Create a service messaging-service to expose the messaging application within the cluster on port 6379

k expose pod messaging --port 6379 --name=messaging-service



Create a static pod named static-busybox on the controlplane node that uses the busybox image and the command sleep 1000

k run static-busybox --image=busybox --dry-run=client -o yaml --command -- sleep 1000 > /etc/kubernetes/manifests/static-busybox.yaml



Forcibly recreate a pod after doing a ‘k edit podname’

k replace --force -f /tmp/output-file-name.yaml



Create a deployment named hr-web-app using the image nginx:alpine with 2 replicas

k create deploy hr-web-app --image=nginx:alpine --replicas=2



Expose the deployment called hr-web-app on a NodePort of 30082

  • Generate a yaml file
k expose deployment hr-web-app --name=hr-web-app-service --type=NodePort --dry-run=client -o yaml --port 8080 > hr-service.yaml
  • Edit the yaml file to add the NodePort value (nodePort: 30082)
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: hr-web-app
  name: hr-web-app-service
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
    nodePort: 30082
  selector:
    app: hr-web-app
  type: NodePort
status:
  loadBalancer: {}
  • Apply the manifest file
k apply -f hr-service.yaml



Use a JSON PATH query to retrieve the OS image names of all the nodes

k get nodes -o jsonpath='{.items[*].status.nodeInfo.osImage}'



Create a persistent volume

apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-analytics
spec:
  capacity:
    storage: 100Mi
  accessModes:
    - ReadWriteMany
  hostPath:
    path: /pv/data-analytics



Backup etcd

  • Ensure correct API Version will be used.
export ETCDCTL_API=3
  • Get the locations of the cert, ca and key files
grep file /etc/kubernetes/manifests/etcd.yaml
  • Perform the backup
etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt \
  --cert=/etc/kubernetes/pki/etcd/server.crt \
  --key=/etc/kubernetes/pki/etcd/server.key \
  --endpoints=localhost:2379 \
  snapshot save backup-file



Create a Pod called redis-storage with image: redis:alpine with a Volume of type emptyDir that lasts for the life of the Pod.

  • Pod ‘redis-storage’ uses volumeMount with mountPath = /data/redis
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: redis-storage
  name: redis-storage
spec:
  containers:
  - image: redis:alpine
    name: redis-storage
    volumeMounts:
    - mountPath: /data/redis
      name: cache-volume
  volumes:
  - name: cache-volume
    emptyDir:
      sizeLimit: 500Mi



Create a new pod called super-user-pod with image busybox:1.28.

  • Allow the pod to be able to set system_time
apiVersion: v1
kind: Pod
metadata:
  labels:
    run: super-user-pod
  name: super-user-pod
spec:
  containers:
  - command:
    - sleep
    - "4800"
    image: busybox:1.28
    name: super-user-pod
    securityContext:
     capabilities:
       add: ["SYS_TIME"]



Create a PersistentVolume and PersistentVolumeClaim

Create the PVC: This assumes the Persistent Volume is already created. The access mode and size mentioned in the pvc should match the volume: k get pv

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: my-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Mi

Create the pod:

apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: use-pv
  name: use-pv
spec:
  volumes:
  - name: task-pv-storage
    persistentVolumeClaim:
      claimName: my-pvc
  containers:
  - image: nginx
    name: use-pv
    volumeMounts:
      - mountPath: "/data"
        name: task-pv-storage



Create a new deployment called nginx-deploy, with image nginx:1.16 and 1 replica

k create deployment nginx-deploy --image=nginx:1.16 --replicas=1



Upgrade the deployment to use image nginx:1.17

kubectl set image deployment/nginx-deploy nginx=nginx:1.17



Create a new user and apply permissions

  • Create a new user

    • Create csr.yaml file
    • Include the given CSR (base64)
    • Change csr name (metadata)
    • Create the CSR in kubernetes k create -f csr.yaml
    • Check the CSR is there k get csr
    • Approve the CSR k approve csr-name

  • Create a new role

    • Create a new role in the development namespace k create role developer --verb=create,get,list,update,delete --resource=pods -n development
    • Get help with creating a role k create role -h

  • Create a role binding

    • Check if the user can do something k auth can-i get pods --namespace=development --as john
    • Create the rolebinding k create rolebinding john-developer --role=developer --user=john --namespace=development
    • Check again if the user can do something k auth can-i get pods --namespace=development --as john



Taking a snapshot of etcd (running as a static pod)

Find locations of needed cert,cacert and key files:

grep file /etc/kubenetes/manifests/etcd.yaml

Perform the backup:

ETCDCTL_API=3 etcdctl snapshot save \
--key="/path/to/key" \
--cert="/path/to/cert" \
--cacert="/path/to/cacert" \
/backup/filename
